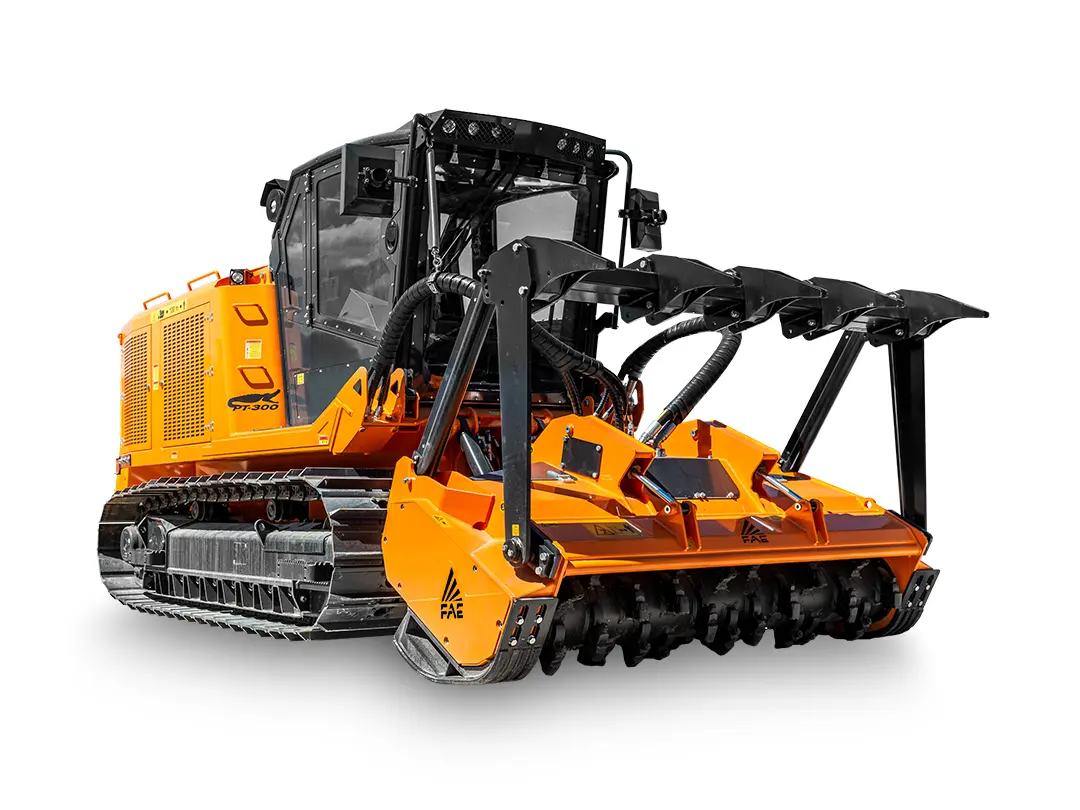

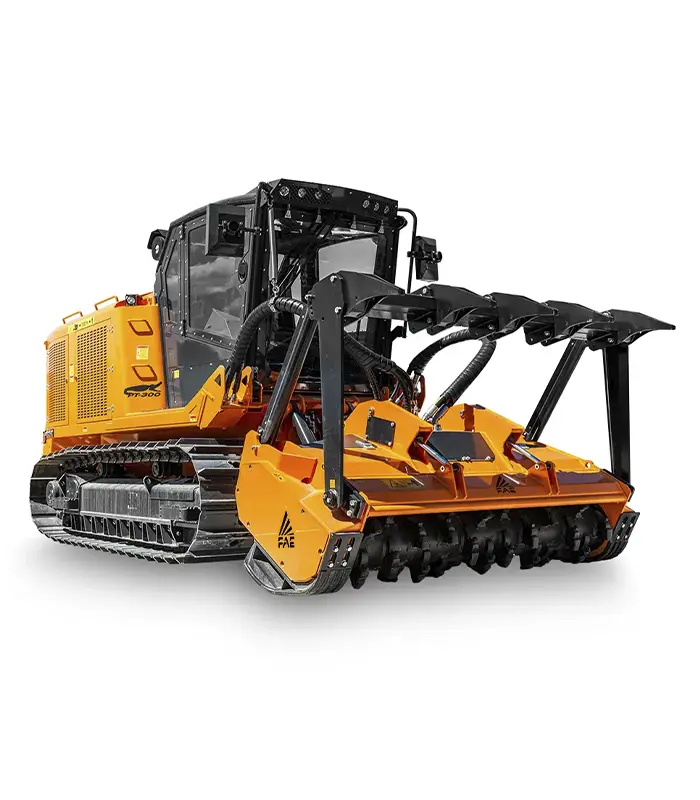

PT300

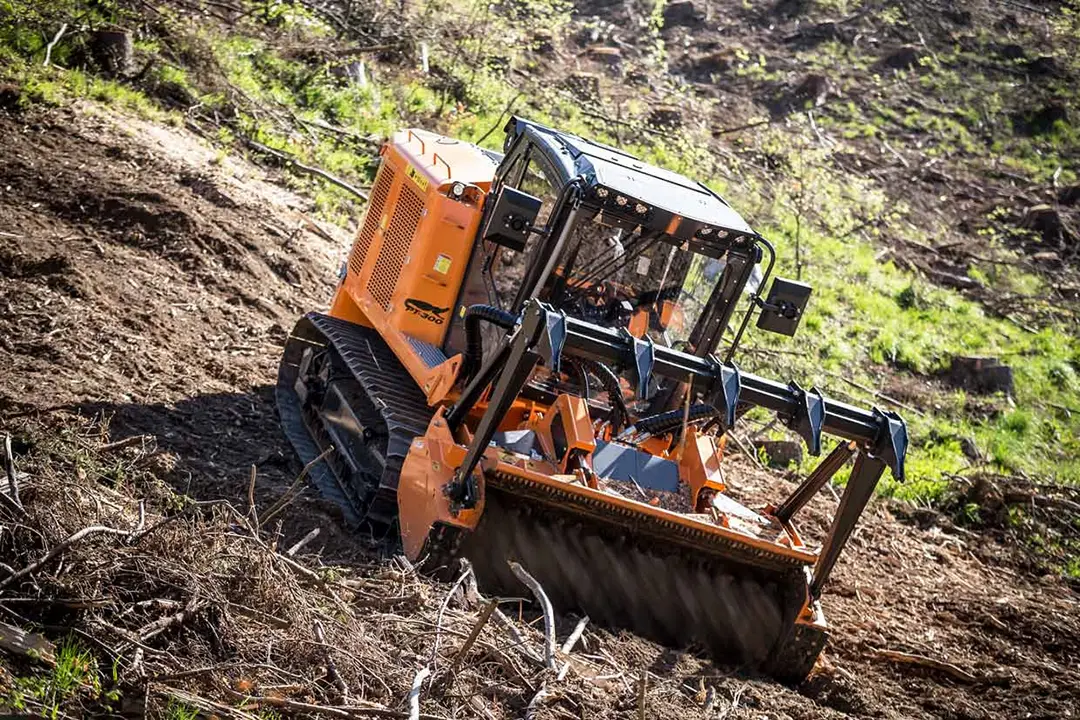

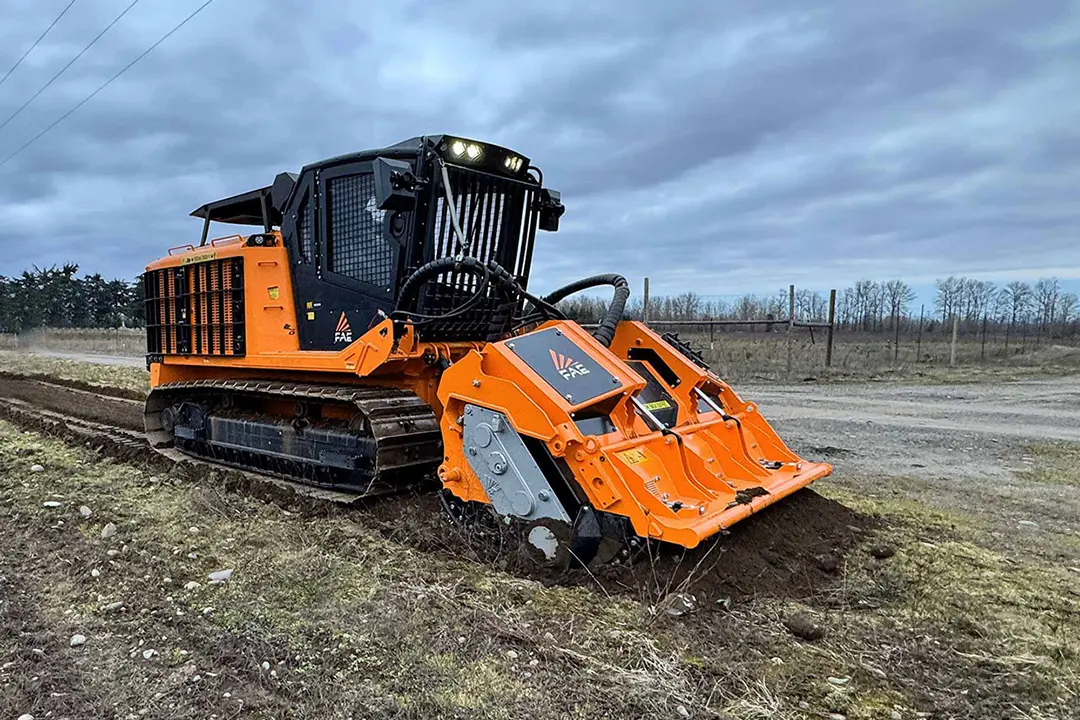

The FAE PT300 is designed to handle the most extreme conditions without compromise. Ideal for forestry work, opening and maintaining firebreaks, as well as for work near power lines, oil and gas pipelines, this tracked self-propelled machine offers performance, precision and total control.

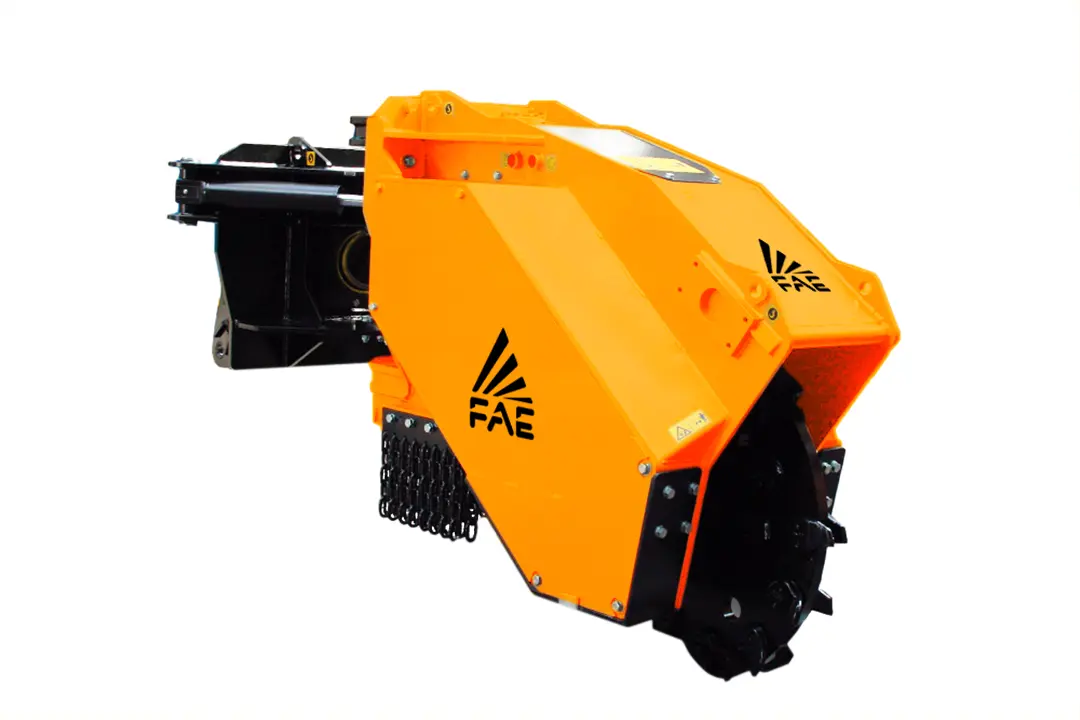

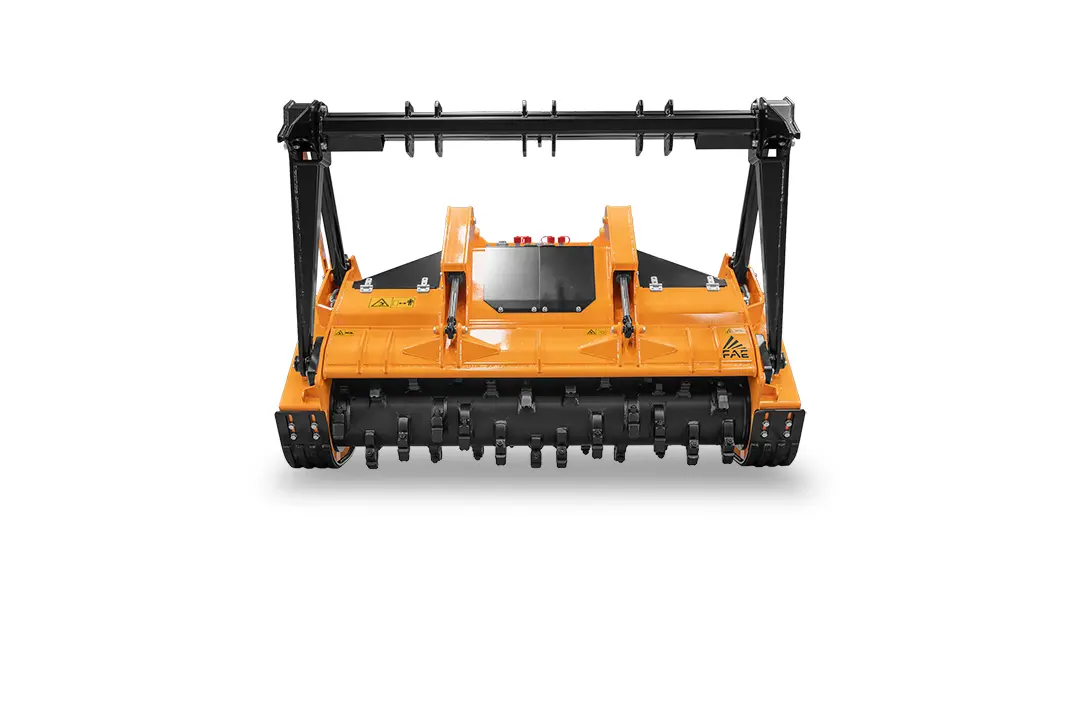

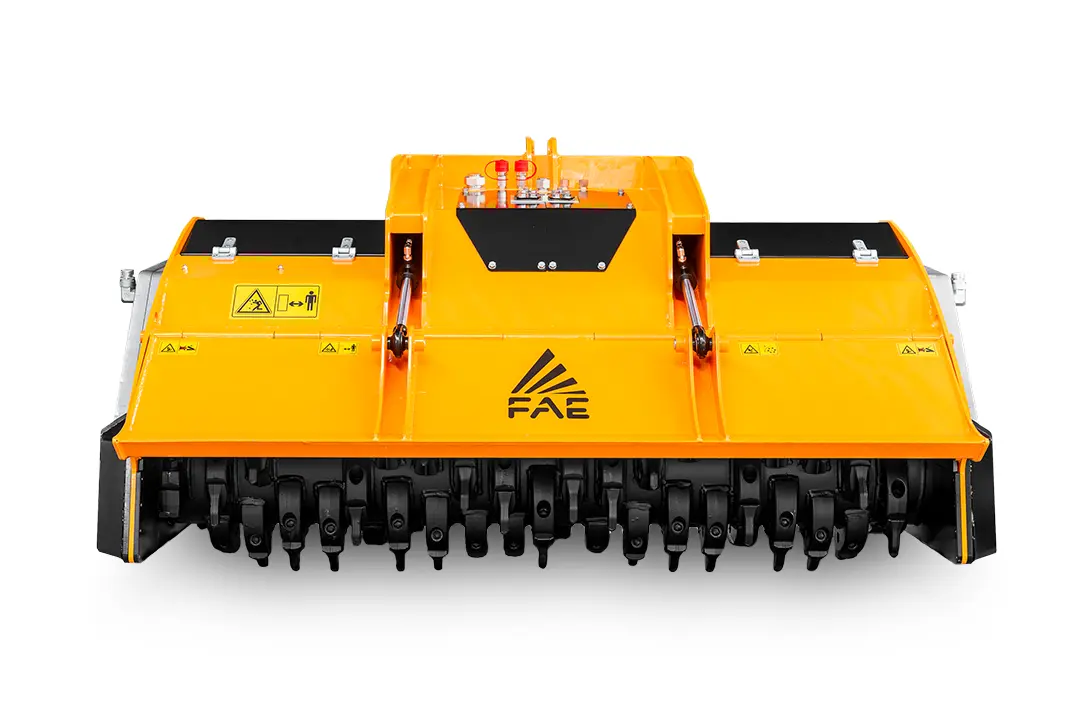

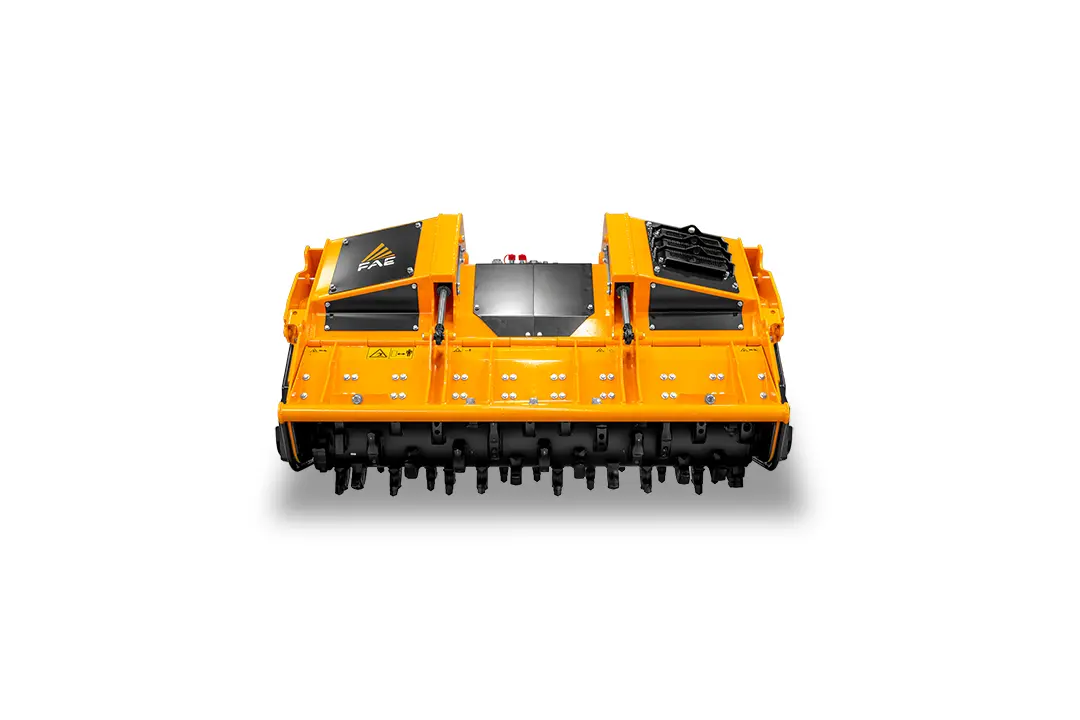

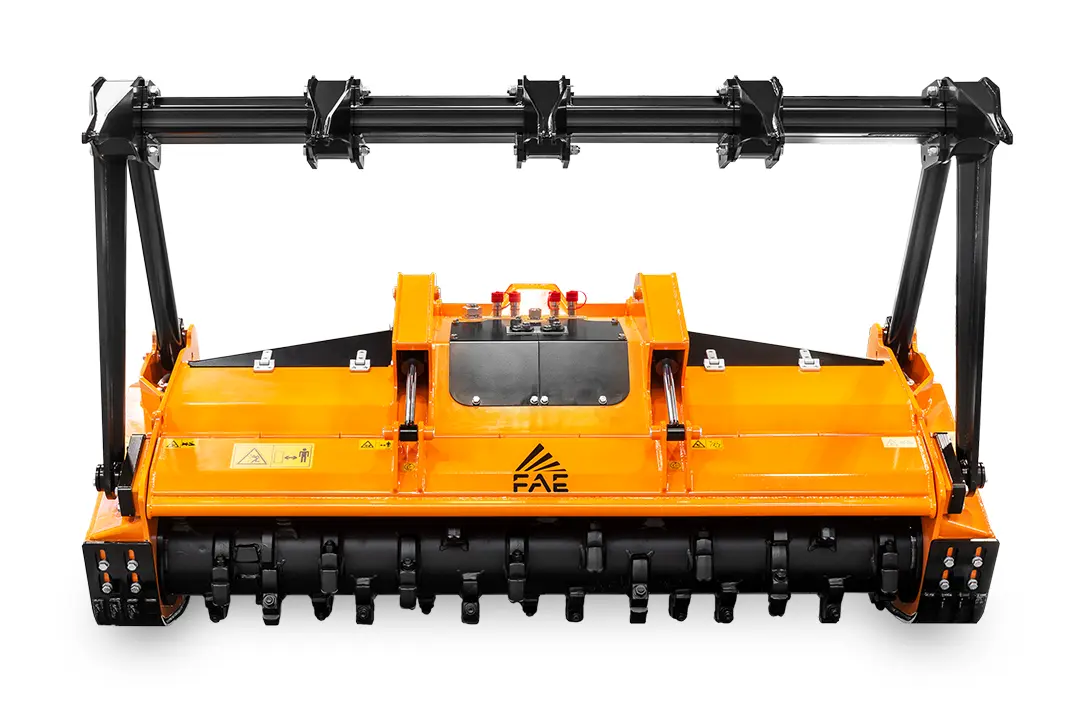

Its robust construction with oscillating chassis allows it to work with a wide range of FAE accessories, including shredders and multifunction heads, among others, ensuring maximum versatility in all applications.
Powered by a powerful 6-cylinder Caterpillar Inc. CAT C7.1 Acert engine, the PT300 combines high power with optimized operating weight, allowing you to work with confidence.
The hydraulic system ensures continued efficiency and reliability, while the cab offers superior levels of comfort, ergonomics and safety for maximum productivit
 |
David Magalhães
Sales department |
PT300 – Technical specifications
Engine
| Engine | CAT C7.1 Acert turbocharged and aftercooled |
|---|---|
| Power | 306.2 cv | EU Stage V |
Dimensions
| A – Overall length without attachments | 4 950 mm |
|---|---|
| B – Transport length | 6 900 mm (with 200/U/SONIC/PT300 and winch) |
| C – Maximum height | 2 785 mm |
| D – Overall width | 2 360 mm (660 mm tracks) |
Technical data
| Travel pumps | 2 – Control EP – 78 cc – Danfoss |
|---|---|
| Travel motors | 2 – Control HY – 80 cc – Danfoss |
| Maximum travel pressure | 420 bar |
| Hydraulic pump | 1 – Control EP – 147 cc – Danfoss |
| Maximum mulcher pressure | 350 bar |
| Oil tank capacity | 320 L |
| Fuel tank capacity | 340 L |
| AdBlue DEF tank capacity | 16 L |
| Chains | Pitch 171, lubricated, Berco (660 mm shoes) |
| Bottom rollers | 6+6 single flange + 3+3 double flange |
| Carrier rollers | 2+2 |
| Voltage | 24 V |
| Maximum forward speed | 6.5 km/h |
| Maximum reverse speed | 6.5 km/h |
| Gradeability | 45º vertical, 35º lateral |
| Operating weight | 11 330 kg (660 mm shoes) | 11 930 kg (800 mm shoes) |
| Ground pressure | 0.29 kg/cm² |
| Brand | FAE |
|---|
