RCU120

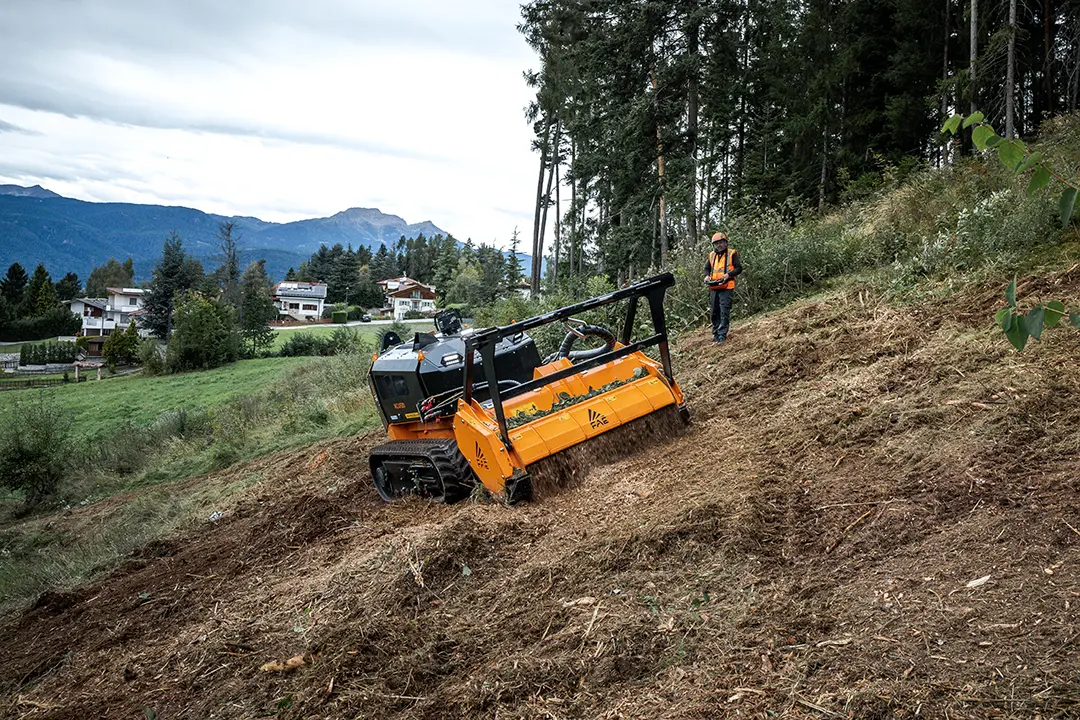

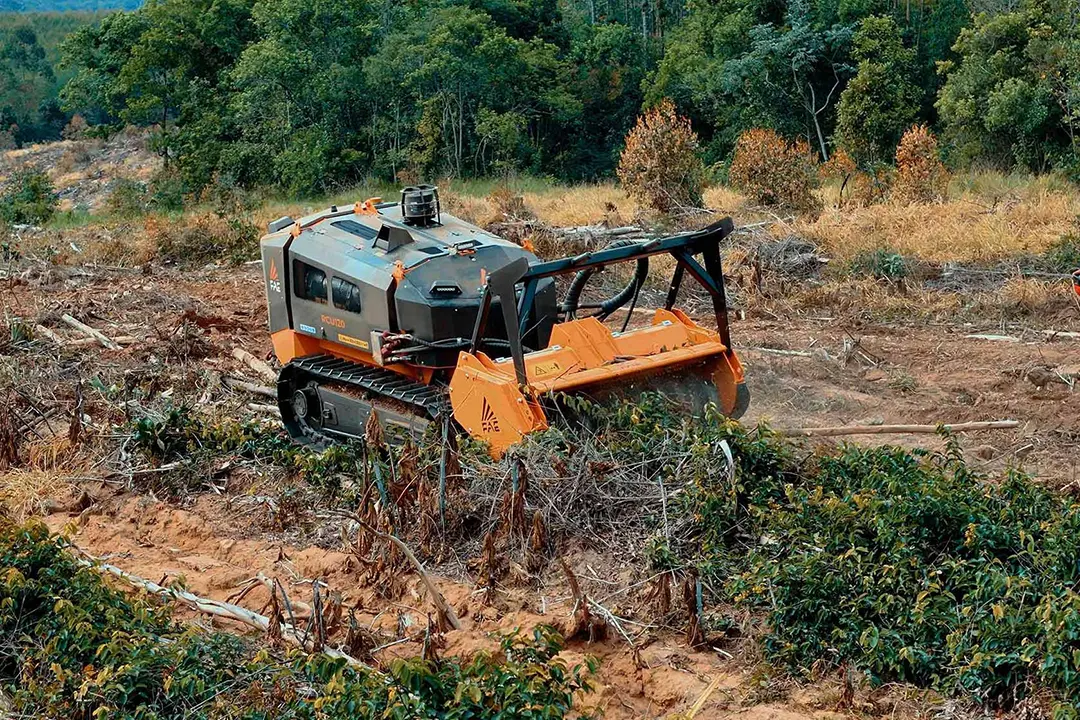

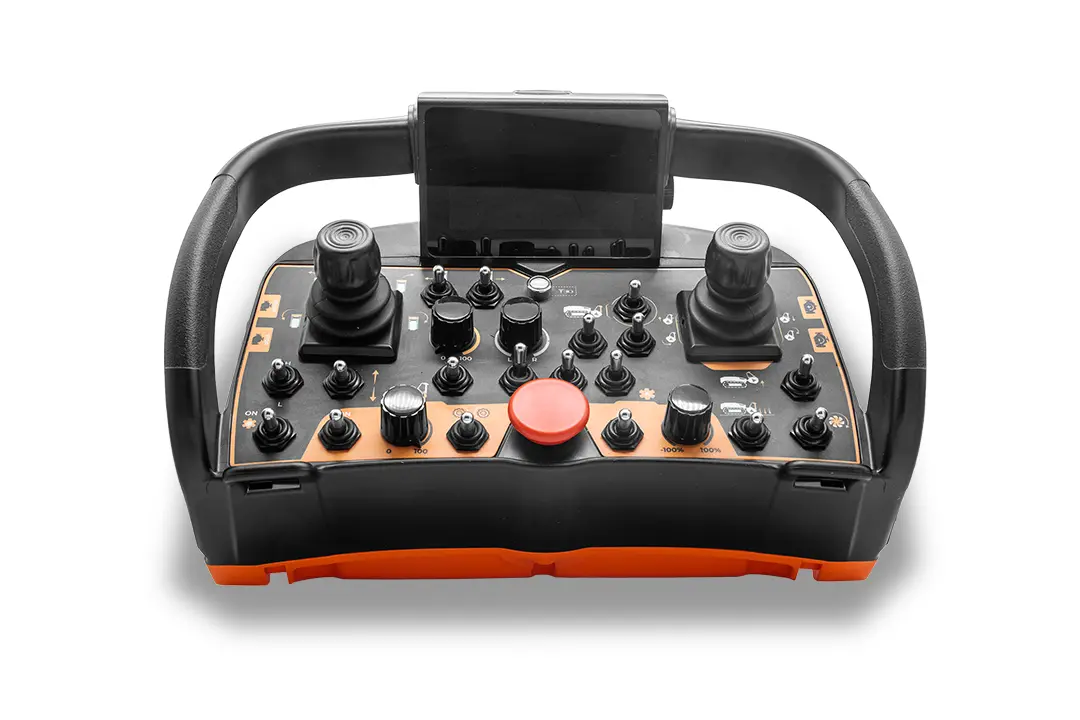

FAE's RCU series has been developed to deliver maximum productivity with total safety, even in the harshest environments. These remote-controlled tracked carriers are ideal for forestry work, land clearing, infrastructure maintenance and operations in sloping or hard-to-reach areas, allowing the operator to work remotely with full control.

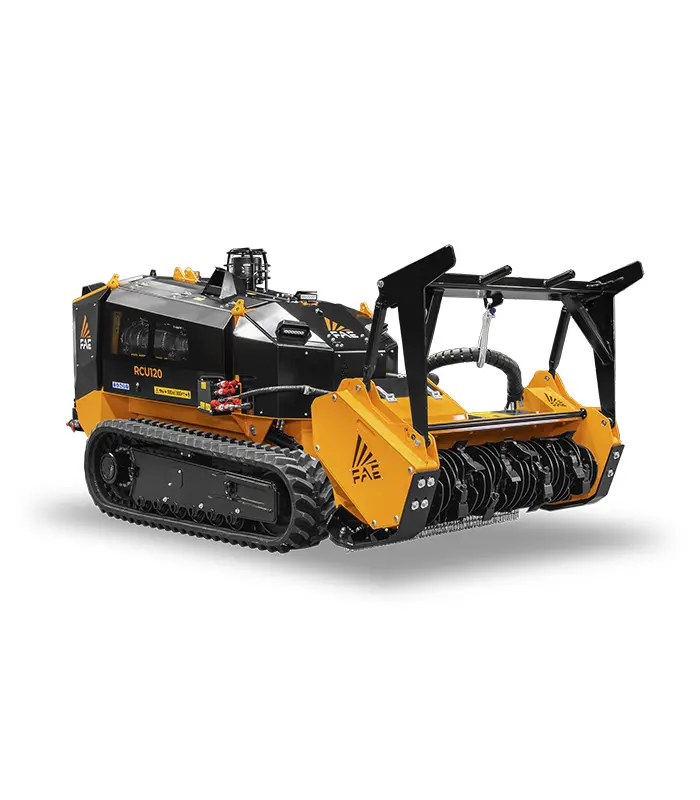

The RCU120 is the top model of the series, developed for the most demanding and intense tasks.
Equipped with a powerful 121.67 cv Rehlko engine, it offers exceptional strength, maximum stability and superior productivity, even on steep terrain and extreme conditions.
Compatible with various accessories, it is the ideal solution for demanding professional operations.
 |
David Magalhães
Sales department |
RCU120 – Technical specifications
Engine
| Engine | REHLKO KDI 3404 turbocharged and aftercooled |
|---|---|
| Power | 121.67 cv | EU Stage V |
Dimensions
| A – Overall length without attachments | 3 160 mm |
|---|---|
| B – Transport length | 4 352 mm (with BL4-RCU120) |
| C – Maximum height | 1 904 mm |
| D – Overall width | 1 750 – 2 150 mm |
Technical data
| Closed circuit | Max. flow 105 L/min – Max. pressure 355 bar |
|---|---|
| Open circuit AUX 1 | Max. flow 15 L/min – Max. pressure 210 bar |
| Open circuit AUX 2 | Max. flow 15 L/min – Max. pressure 210 bar |
| Open circuit AUX 3 | Max. flow 40 L/min – Max. pressure 210 bar |
| Lifting capacity | 1 350 kg at the centre of gravity |
| Hydraulic oil tank capacity | 56 L |
| Fuel tank capacity | 63 L |
| AdBlue tank capacity | 16 L |
| Rubber tracks | Pitch 86 mm – width 320 mm – high profile |
| Bottom rollers | 6+6 HD – double flange |
| Tensioning unit | Double flange – automatic tensioning |
| Voltage | 12 V |
| Maximum forward speed | 5 km/h |
| Maximum reverse speed | 5 km/h |
| Gradeability | 55º |
| Operating weight | 3 850 kg (with rubber tracks) |
| Ground pressure | 0.41 kg/cm² |
| Brand | FAE |
|---|
Our company Forestcorte Máquinas, S.A. is the official representative in Portugal of tracked carriers and remote-controlled tracked carriers’ series.
Since 1989, FAE, a leading Italian company, has guaranteed maximum precision, high-quality materials and the most advanced technologies in its products and accessories.
