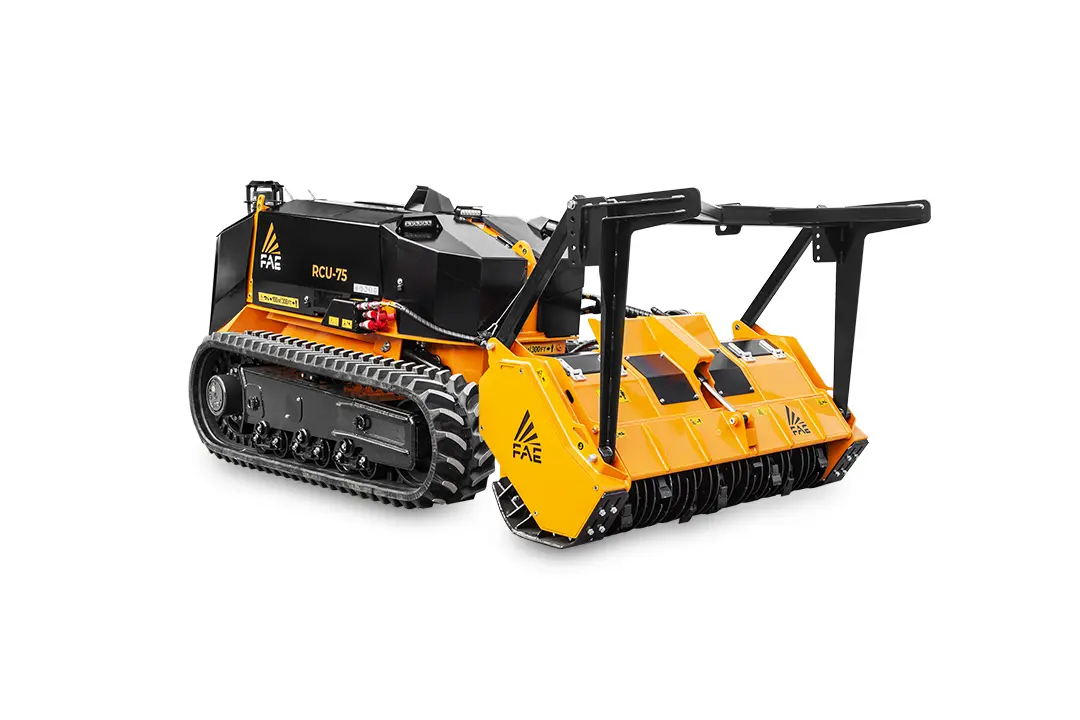

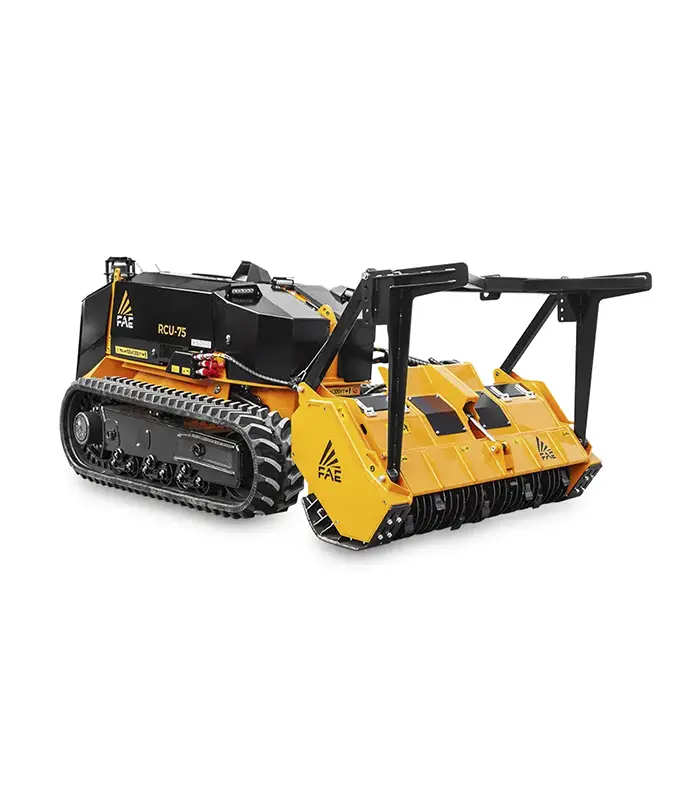

RCU75

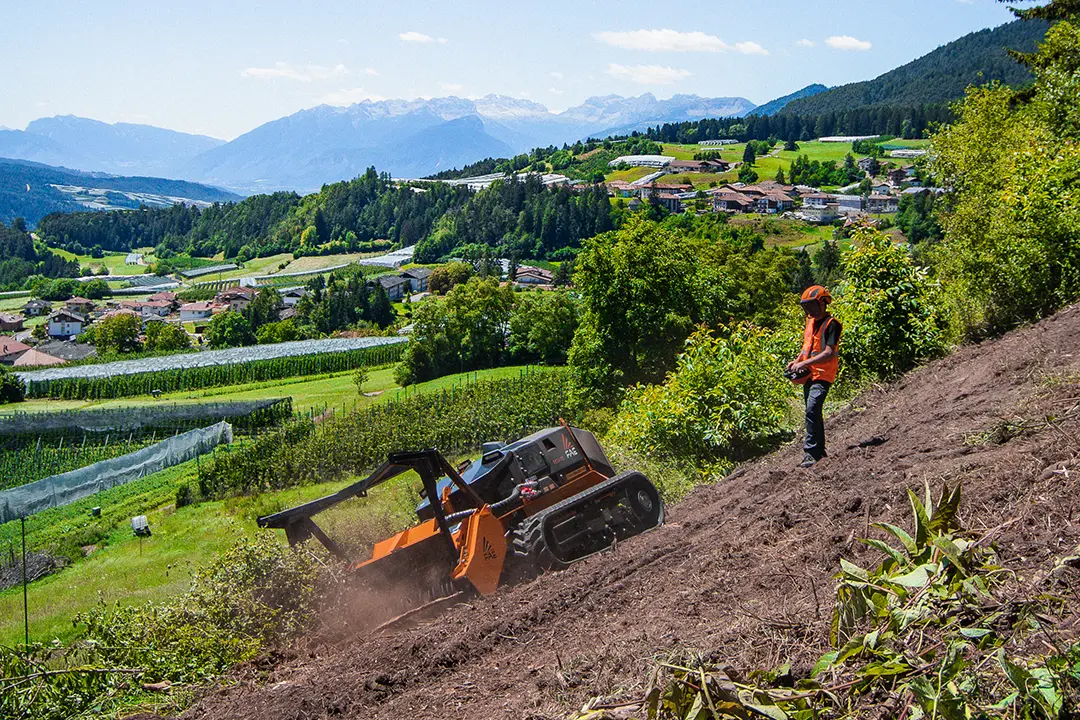

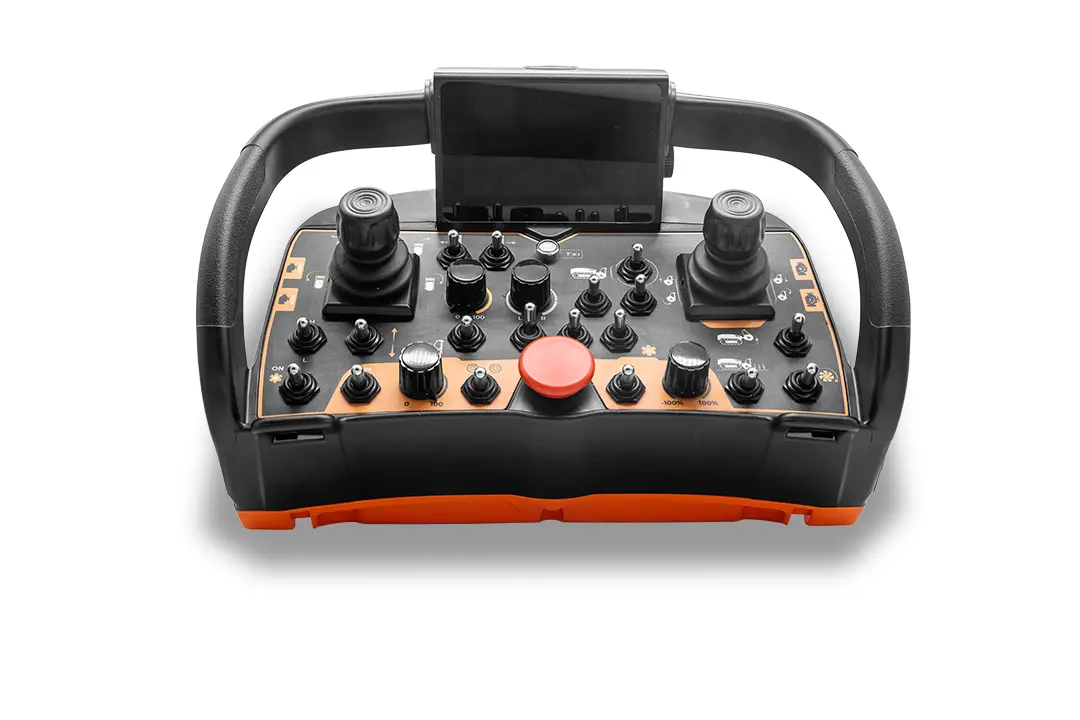

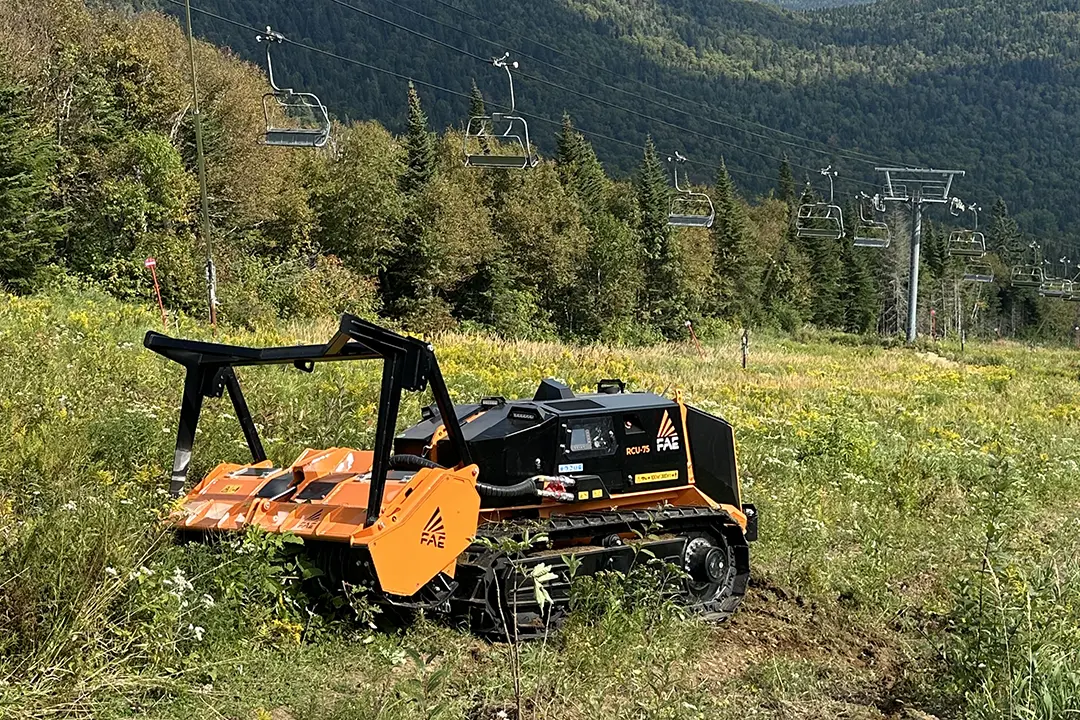

FAE's RCU series has been developed to deliver maximum productivity with total safety, even in the harshest environments. These remote-controlled tracked carriers are ideal for forestry work, land clearing, infrastructure maintenance and operations in sloping or hard-to-reach areas, allowing the operator to work remotely with full control.
The RCU75 is up to any challenge. With a 75.03 cv Rehlko engine, the RCU75 is compatible with a wide range of accessories. It is the ideal choice for professionals who demand maximum performance in all situations.
 |
David Magalhães
Sales department |
RCU75 – Technical specifications
Engine
| Engine | REHLKO KDI 2504 turbocharged and aftercooled |
|---|---|
| Power | 75.03 cv | EU Stage V |
Dimensions
| A – Overall length without attachments | 2 996 mm |
|---|---|
| B – Transport length | 4 050 mm (with BL2-RCU75) |
| C – Maximum height | 1 560 mm |
| D – Overall width | 1 700 – 2 100 mm |
Technical data
| Closed circuit | Max. flow 105 L/min – Max. pressure 320 bar |
|---|---|
| Open circuit AUX 1 | Max. flow 15 L/min – Max. pressure 210 bar |
| Open circuit AUX 2 | Max. flow 15 L/min – Max. pressure 210 bar |
| Open circuit AUX 3 | Max. flow 40 L/min – Max. pressure 210 bar |
| Lifting capacity | 950 kg at the centre of gravity |
| Hydraulic oil tank capacity | 46 L |
| Fuel tank capacity | 63 L |
| Rubber tracks | Pitch 86 mm – width 320 mm – high profile |
| Bottom rollers | 6+6 HD – double flange |
| Tensioning unit | Double flange – automatic tensioning |
| Voltage | 12 V |
| Maximum forward speed | 7.5 km/h |
| Maximum reverse speed | 7.5 km/h |
| Gradeability | 55º |
| Operating weight | 3 380 kg (with rubber tracks) |
| Ground pressure | 0.35 kg/cm² |
| Brand | FAE |
|---|
Our company Forestcorte Máquinas, S.A. is the official representative in Portugal of tracked carriers and remote-controlled tracked carriers’ series.
Since 1989, FAE, a leading Italian company, has guaranteed maximum precision, high-quality materials and the most advanced technologies in its products and accessories.
