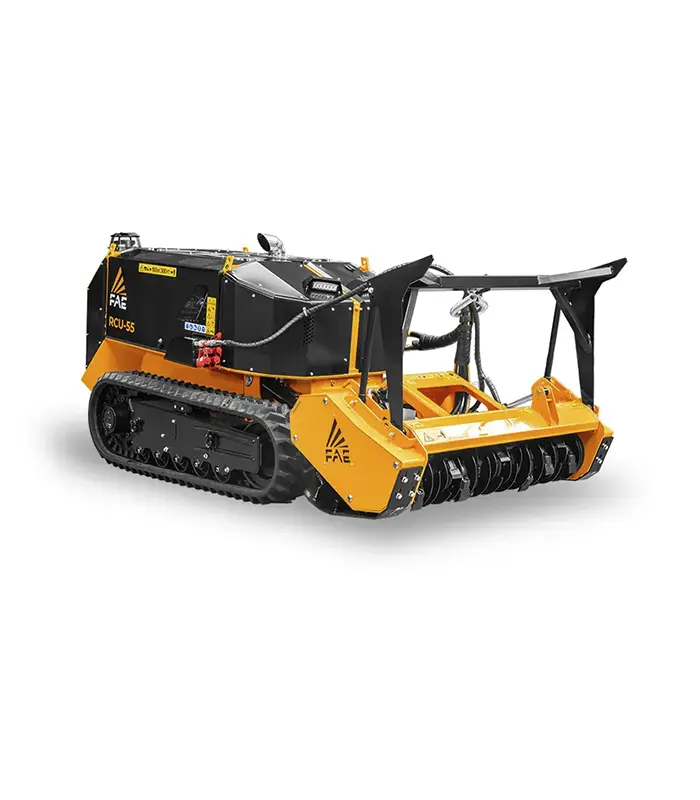

RCU55
FAE's RCU series has been developed to deliver maximum productivity with total safety, even in the harshest environments. These remote-controlled tracked carriers are ideal for forestry work, land clearing, infrastructure maintenance and operations in sloping or hard-to-reach areas, allowing the operator to work remotely with full control.
The RCU55 stands for total versatility with absolute control. It is designed to guarantee maximum stability and performance, even on the most difficult terrain.
With a 56.8 cv Rehlko engine, it easily adapts to different working conditions, allowing operations with total efficiency.
 |
David Magalhães
Sales department |
RCU55 – Technical specifications
Engine
| Engine | REHLKO KDI 1903 turbocharged and aftercooled |
|---|---|
| Power | 56.8 cv | EU Stage V |
Dimensions
| A – Overall length without attachments | 2 346 mm |
|---|---|
| B – Transport length | 3 260 mm (with BL1-RCU55) |
| C – Maximum height | 1 450 mm |
| D – Overall width | 1 450 – 1 750 mm |
Technical data
| Hydrostatic closed circuit | Max. pressure 290 bar |
|---|---|
| Attachment closed circuit | Max. flow 75 L/min – Max. pressure 290 bar |
| Open circuit AUX 1 | Max. flow 17 L/min – Max. pressure 150 bar |
| Open circuit AUX 2 | Max. flow 17 L/min – Max. pressure 150 bar |
| Open circuit AUX 3 | Max. flow 27 L/min – Max. pressure 150 bar |
| Lifting capacity | 600 kg at the centre of gravity |
| Hydraulic oil tank capacity | 41 L |
| Fuel tank capacity | 42 L |
| Rubber tracks | Pitch 72 mm – width 250 mm – high profile |
| Bottom rollers | 5+5 HD – double flange |
| Tensioning unit | Double flange – automatic tensioning |
| Voltage | 12 V |
| Maximum forward speed | 8 km/h |
| Maximum reverse speed | 8 km/h |
| Gradeability | 55º |
| Operating weight | 2 220 kg (with rubber tracks) |
| Ground pressure | 0.33 kg/cm² |
| Brand | FAE |
|---|
Our company Forestcorte Máquinas, S.A. is the official representative in Portugal of tracked carriers and remote-controlled tracked carriers’ series.
Since 1989, FAE, a leading Italian company, has guaranteed maximum precision, high-quality materials and the most advanced technologies in its products and accessories.
