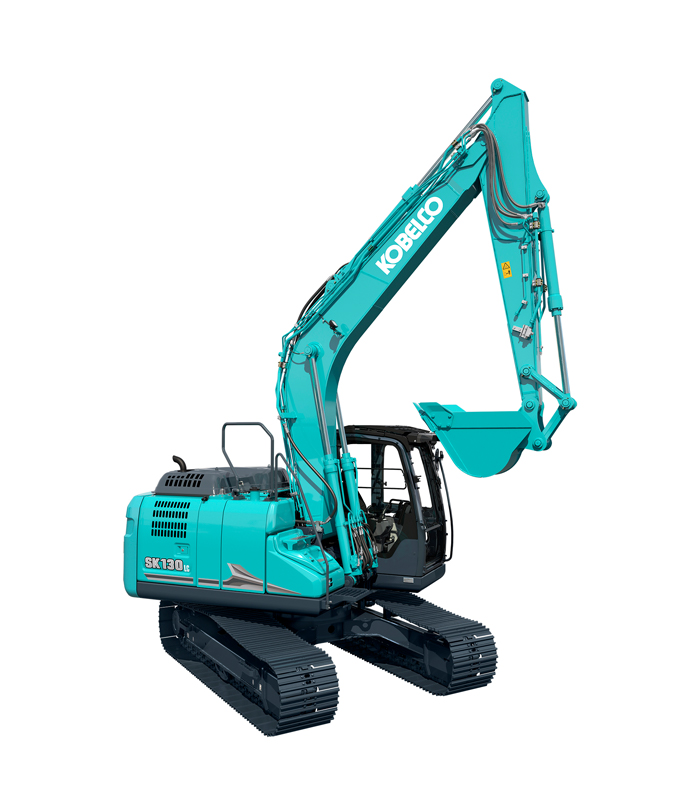

Kobelco SK130LC-11
The KOBELCO SK130LC-11 excavator ushers in a new era of profitability, delivering exceptional performance, greater efficiency and productivity thanks to more power and speed. Its new design offers exceptional ergonomics and comfort to the operator.
 |
David Magalhães
Sales department |
14.200 - 17.100 kg
78.5 kW / 2,000 min-1 (ISO 14396)
0,24 - 0,70 m3
| Engine: | |||
|---|---|---|---|
| ISUZU MOTORS LIMITED 4JJ1XDDV A01 | |||
| Type | Four-cycle, liquid-cooled, direct injection diesel, turbo charged complies with EU Stage V exhaust emission regulation | ||
| Fuel tank | 280 L | ||
| Displacement | 2.999 L | ||
| Engine power | 78,5 kW / 2.000 min-1 (ISO 14396) | ||
| HYDRAULIC SYSTEM | |
|---|---|
| Type | Two variable displacement piston pumps + one gear pump |
| Max. discharge flow | 2 x 130 L/min, 1 x 50 L/min (extra) |
| Relief valve setting | 34,3 MPa (boom, arm and bucket) |
| Hydraulic oil tank | 96.7 L tank oil level, 180 L hydraulic system |
| DIGGING FORCE | |
|---|---|
| Bucket digging force (standard) | 105,4 kN |
| Arm crowding force (standard) | 64 kN |
| Arm crowding force (extensive) | 58 kN |
| Standard arm length | 2,38 m |
| Extensive arm lenght | 2,84 m |
| TRAVEL SYSTEM | |
|---|---|
| Travel motors | Variable displacement piston, two-speed motors |
| Travel shoes | 46 each side |
| Travel speed | 3,4/5,6 km/h |
| Swing speed | 11 min-1 |
| Drawbar pulling force | 141 kN (SAE) |
| Brand | Kobelco |
|---|
Forestcorte Máquinas is represented by the Japanese manufacturer Kobelco, known worldwide as one of the main excavator specialists.
Today's Kobelco excavators are built at Kobelco's state-of-the-art factory in Japan. Its advanced technology and features include superior fuel efficiency, a noise- and dust-reducing integrated cooling system, and an advanced hydraulic system for powerful, high performance.
The new Generation 10 machines lead the way due to their low emissions, reduced operating costs and increased work performance and are testament to Kobelco's eight decades of experience and expertise.
PICKUP AND SHIPPING
You can pick up the parts you ordered at our facilities. We also work with transport companies that will deliver your orders to their facilities or to the address you provide to us at the time of ordering.
DELIVERY TIMES
Delivery times vary depending on our stock. In fact, if the product is available at our facility, we prepare and ship the order the same day. Otherwise, it all depends on our suppliers' stock.
