ROTTNE F18E
The Rottne F18E is a large forwarder with a load capacity of 18 tons, providing more efficient transport for long shipping distances. Large boggies with wide wheels provide excellent load capacity and smooth, delicate travel. The chassis is available in two lengths and the cargo area has a very low center of gravity.
 |
David Magalhães
Sales department |

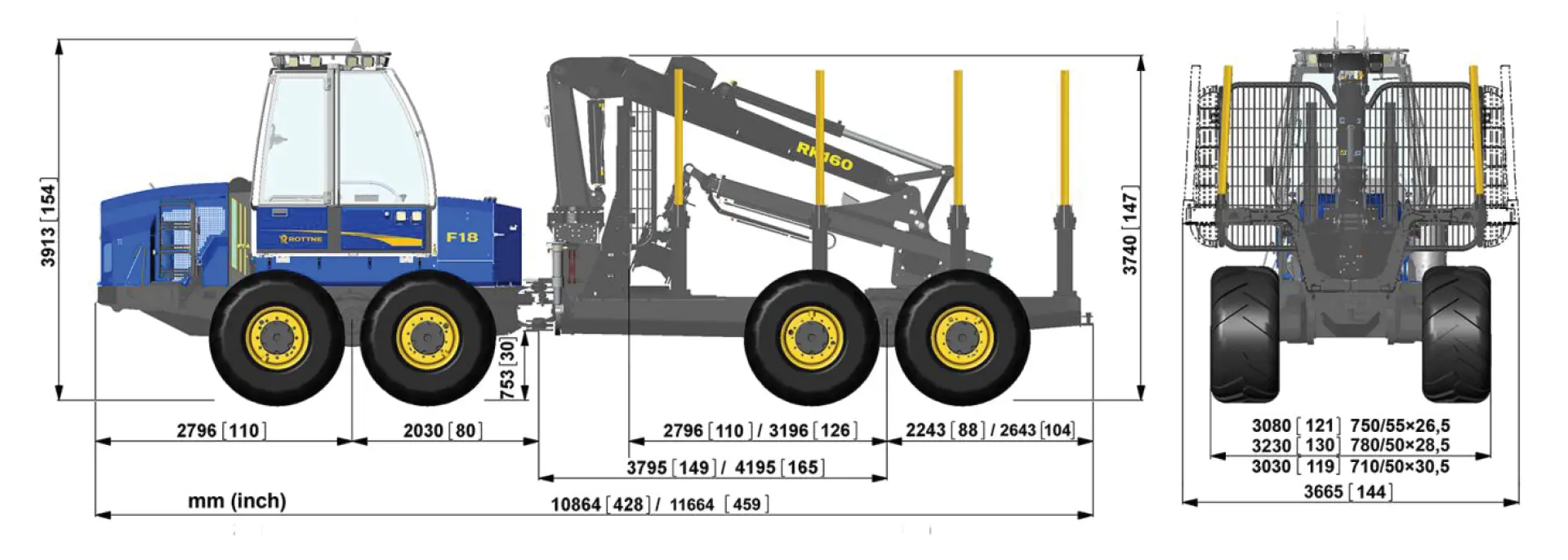

22 400 kg
10,864 m
3,200 m
3,913 m
| Engine: | |
|---|---|
| John Deere Power Tech PVS 6090 CI550, Stage V | |
| Fuel | Diesel |
| Fuel tank | 210 liter |
| AdBlue-tank | 10 liter |
| Engine output | Máx. 207 kW, 221 Cv Din, @1700 rpm |
| Engine torque | Máx. 1232 Nm @1500 rpm |
| Cylinder volume | 6 cyl. 9 liter with common rail injection system seriell turbo, 1 variable |
| Hydrostatic transmission | |
|---|---|
| Hydrostatic/mechanical transmission with load regulation controlled by Rexroth control system | |
| Tractive force | 260 kN |
| Gear 1 | 0 - 6 km/h |
| Gear 2 | 0 - 12 km/h |
| Gear 3 | 0 - 20 km/h |
| Brake | |
|---|---|
| 2-circuit electrically/hydraulically operated negative wet disc brakes. Automatic load brake. Spring assisted parking and emergency brake. |
| Crane | |
|---|---|
| Jib arm crane RK160 with dual slew cylinders and telescope 2.2 | |
| Lifting torque | 156 kNm |
| Torque | 45 kNm |
| Angle of rotation | 370º |
| Reach | 8,5 m with 2,2 m extension |
| Grapple | HSP 040 HD |
| Hydraulic system | |
|---|---|
| Load sensing hydraulic system. | |
| Pump capacity |
180 cm3 270 liter / 1500 rpm 3,0 – 22,0 MPa (working pressure) |
| Tank volume | 130 liter |
| Degree of filtration | 10 μm |
| Cab: | |
|---|---|
| Spacious, vibration-proof safety cab, ISO certified | |
| Noise level | 65dBA |
| Climate system | ACC |
| Palettes | Button panels and mini displays mounted in armrests. Crane levers. Joystick, tilt, or mini wheel on the control levers. Mini wheel or mechanical lever steering |
| Electrical system | |
|---|---|
| 24 volt electrical system with CAN-bus technology | |
| Battery capacity | 2 x battery 145 + 145 Ah |
| Alternator | 150 A |
| Bucking system | Rottne Forester |
| Display | 10.1” operating screen with touch |
| Working lights | 17 |
| Chassi | |
|---|---|
| Frame-steered, steering angle +/- 43º. | |
| Max steering torque | 93,5 kNm |
| Wheel equipment | |
|---|---|
| 750/55 x 26,5/24 F2 SF Nokian Forest King |
| Brand | Rottne |
|---|
